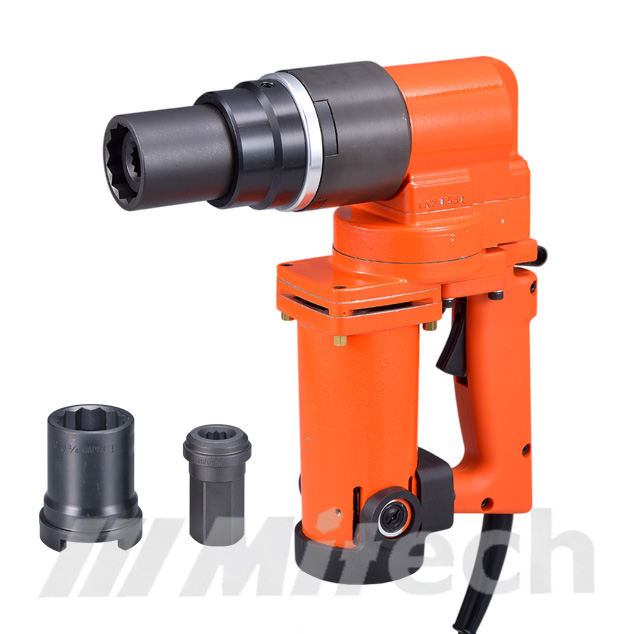

Electric Shear Wrench
Specification
Description
| TS-102L | TS-122L | TS-104L | TS-242L | TS-222LR | |
| Capacity | M16/20/22 | M16/20/22/24 | M16/20/22/24 | M16/20/22/24 | M16/20/22 |
| Power | AC 50-60Hz | AC 50-60Hz | AC 50-60Hz | AC 50-60Hz | AC 50-60Hz |
| Voltage | 220 V | 220 V | 220 V | 220 V | 220 V |
| Free Speed | 25 rpm | 21 rpm | 25 rpm | 11 rpm | 16 rpm |
| Max. Torque | 1000Nm | 1200Nm | 1000Nm | 1000Nm | 850Nm |
| Weight | 7.8 kgs | 9.0 kgs | 8.0 kgs | 7.1 kgs | 6.3 kgs |
| Included Sockets | M16/20/22 | M20/22/24 | M20/22/24 | M22/24 | M20/22 |
-
-
