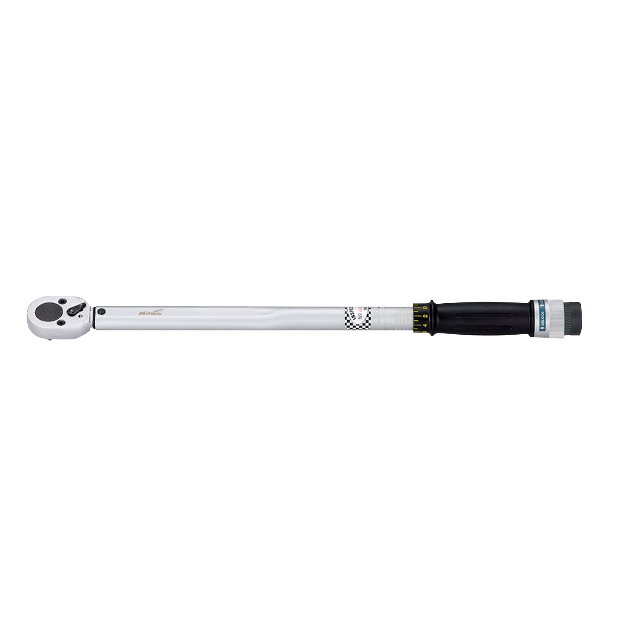

Adjustable Torque Wrench

Prev Next

Specification

Item No. Drive Range
2322030 1/4" 6-30 Nm
2323110 3/8" 20-110 Nm
2324210 1/2" 40-210 Nm
2324350 1/2" 70-350 Nm
2326500 3/4" 100-500 Nm
2326700 3/4" 140-700 Nm
2326980 3/4" 140-980 Nm
2328980 1" 140-980 Nm

Item No. Drive Range
2322250 1/4" 40-250 in.lb
2323080 3/8" 15-80 ft.lb
2324150 1/2" 30-150 ft.lb
2324250 1/2" 50-250 ft.lb
2326300 3/4" 50-300 ft.lb
2326600 3/4" 100-600 ft.lb
2326700 3/4" 100-700 ft.lb
2328700 1" 100-700 ft.lb



Description

• Industrial application.
  • • Direction & Accuracy : C.W. ±4%
  • • Easy and flexible operation of design.
  • • A variety of types and wide torque range of choice.
  • • Torque range : 6Nm - 2000Nm (40in.lb - 1500ft.lb).
  • • Torque setting types : Adjustable torque type
  • • Supplied in a plastic box.

  • CHEN DER MACHINE INDUSTRY CO.,LTD.
